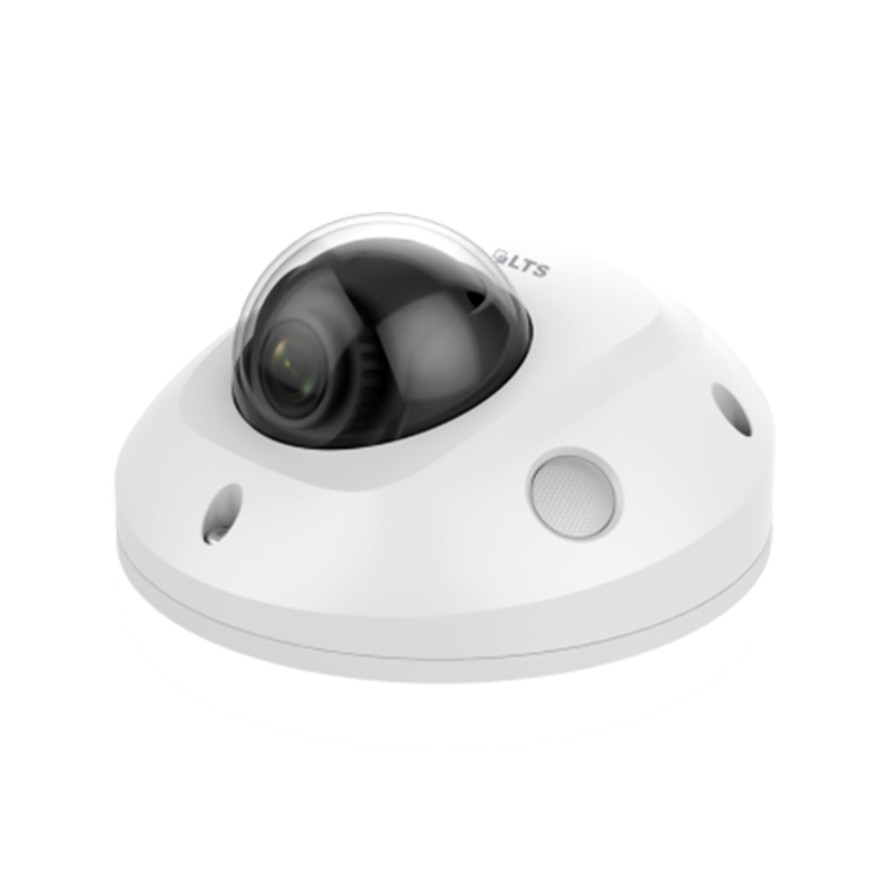

Camera |
|
Image Sensor |
1/3" Progressive Scan CMOS |
Min. Illumination |
Color: 0.018 lux @(F1.6, AGC ON), 0 lux with IR |
Shutter Speed |
1/3 s to 1/100,000 s |
Lens |
2.8mm@F2.0 |
|
2048 × 1536:Angle of view: 86° |
|
1920 × 1080:Angle of view: 98.5° |
Lens Mount |
M12 |
Day & Night |
IR Cut Filter |
Digital Noise Reduction |
3D DNR |
Wide Dynamic Range |
120dB |
3-Axis Adjustment |
Pan: -30°to +30°, tilt: 0°to 75°, rotate: 0°to 360° |
Compression Standard |
|
Video Compression |
Main stream: H.265/H.264 |
|
Sub stream: H.265/H.264/MJPEG |
|
Third stream: H.265/H.264 |
H.264 compression profile |
Main Profile/High Profile |
Bit Rate |
32 Kbps ~ 16 Mbps |
Audio compression |
G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM |
Audio bit rate |
64Kbps(G.711) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
Image |
|
Max. Resolution |
2688 × 1520 |
Frame Rate |
60Hz: 20fps (2048 x 1536), 30fps (1920 × 1080), 30fps (1280 x 720) |
|
50Hz: 20fps (2048 x 1536), 25fps (1920 × 1080), 25fps (1280 x 720) |
Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser |
Network |
|
Network Storage |
Support MicroSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
Alarm Trigger |
Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login |
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, QoS, IPv6 |
API |
ONVIF (PROFILE S, PROFILE G), ISAPI |
General functionalities |
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
Interface |
|
Communication Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
On-board Storage |
Built-in Micro SD/SDHC/SDXC slot, up to 128G |
Alarm interface |
1 Input: Alarm in (3.5mm), 1 Output: Alarm out (3.5mm) |
General |
|
Working Temperature |
-30 °C ~ 60 °C (-22 °F ~ 140 °F), humidity 95% or less (non-condensing) |
/Humidity |
|
Power Supply |
12 VDC ± 25%, PoE (802.3af, class 3) |
Power Consumption |
12 VDC, 0.7A, max. 8.5W, Φ 5.5mm coaxial plug power PoE (802.3af, 36V to 57V), 0.3 A to 0.1 A, max. 10W |
Ingress Protection Level |
IK08, IP66 |
Dimension |
Φ110 mm × 56.4 mm (Φ4.3" × 2.2") |
Weight |
Camera: Approx. 400 g (0.9 lb.) |
